Smart Commercial Hood System Design Tips for Kitchens

Hey everyone, Sammy here, reporting live from my home office in Nashville – which today smells suspiciously like burnt toast because, well, multitasking isn’t always my strong suit. Luna, my cat, seems entirely unbothered, unlike me when I walk into a restaurant and get hit with a wall of stale grease smell. It instantly makes me question everything about the place. And that, my friends, brings us to something incredibly important but often overlooked in the culinary world: commercial hood system design. It’s not the sexiest topic, I know. It doesn’t involve artisan cheese or perfectly plated entrees. But get it wrong, and everything else suffers – the food, the staff, the customer experience, even the building itself.

I spent years in marketing before diving headfirst into the food and lifestyle scene here at Chefsicon.com, and one thing I learned is that the ‘backstage’ operations profoundly impact the ‘front stage’ perception. A poorly designed hood system is like bad branding – it creates negative associations you might not even consciously register. Think about it: a smoky dining room, staff sweating buckets and looking miserable, lingering cooking odors… these aren’t exactly ingredients for a five-star review, right? Conversely, a well-designed system works silently in the background, ensuring safety, comfort, and efficiency. It’s the unsung hero of the commercial kitchen.

So, today, I want to dive into some practical commercial hood system design tips. This isn’t just about ticking boxes for the health inspector; it’s about creating a better, safer, and more profitable kitchen environment. We’ll look at everything from choosing the right type of hood to understanding airflow, makeup air (super important!), ductwork, fire suppression, and navigating those tricky building codes. Whether you’re designing a new kitchen from scratch, renovating an existing space, or just trying to figure out why your current system isn’t cutting it, I hope this gives you some valuable insights. Let’s clear the air, shall we?

Decoding Commercial Kitchen Ventilation: The Core Components

Alright, let’s get into the nuts and bolts. Designing a commercial hood system isn’t just plonking a big metal box over your cooking line. It’s a delicate balancing act involving physics, safety regulations, and practical considerations. It’s a system, meaning multiple parts have to work together seamlessly. Get one part wrong, and the whole thing can be inefficient or even dangerous. I sometimes think it’s like orchestrating a symphony – every instrument needs to be in tune and play its part correctly for the final piece to sound right. Or in this case, for the air to be clean and safe.

1. Choosing Your Weapon: Type I vs. Type II Hoods

First things first, you need the right kind of hood for the job. Commercial hoods generally fall into two main categories: Type I and Type II. Type I hoods, often called grease hoods, are the heavy hitters. They’re designed for appliances that produce grease-laden vapors – think ranges, fryers, griddles, charbroilers, woks. They absolutely *must* have a grease removal system (like filters) and often incorporate fire suppression systems because, well, grease fires are a serious risk. If you’re cooking anything that involves significant heat and grease, you need a Type I hood. No exceptions. It’s all about capturing those flammable vapors before they build up in your ductwork.

Type II hoods, on the other hand, are for heat and condensation removal, but *not* grease. Think about ovens (like pizza or bakery ovens where grease isn’t the primary byproduct), steamers, dishwashers, or coffee makers. They handle steam, heat, odors, and moisture, but they aren’t equipped for grease particles. Using a Type II hood over a deep fryer would be a massive code violation and incredibly unsafe. So, rule number one: accurately assess what kind of effluent your cooking equipment produces. This dictates the fundamental type of hood you need. Don’t try to cut corners here; it’s just not worth the risk.

2. Hood Styles: Canopy, Island, Proximity – Form Follows Function

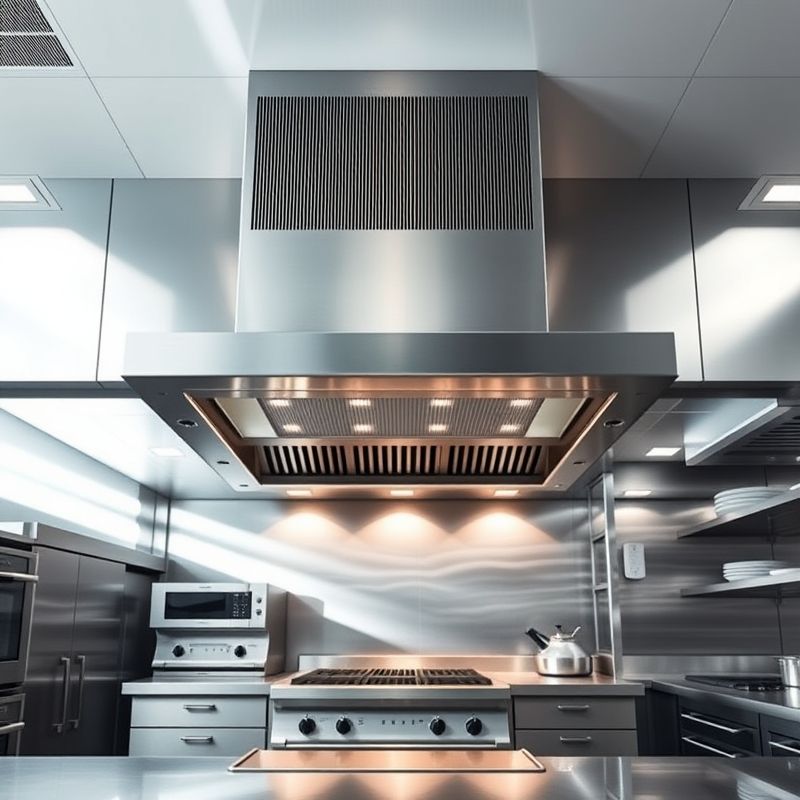

Once you know if you need a Type I or Type II, you need to consider the style and placement. The most common is the wall-mounted canopy hood. As the name suggests, it mounts against a wall, extending out over the cooking equipment lined up below. Then there’s the island canopy hood (or double island), which hangs from the ceiling over an island cooking suite. These need to be larger than wall canopies because air currents can come from all sides, making capture trickier. You also have proximity hoods (also called backshelf or low-profile hoods) which sit much closer to the cooking surface, often behind counter-height equipment. They require less exhaust airflow because they are closer to the source, but they aren’t suitable for all equipment types, especially heavy-duty charbroilers that throw off a lot of heat and plume vertically.

The choice depends entirely on your kitchen layout and equipment line. A long line of fryers and ranges against a wall? A wall canopy makes sense. A central cooking block? Island canopy it is. Countertop equipment like small griddles or panini presses? A proximity hood might work. The key is ensuring the hood overhangs the cooking equipment sufficiently on all open sides – typically 6 inches, but codes can vary. This overhang is crucial for capturing effluent that expands as it rises. It’s physics, really. Under-sizing the hood or choosing the wrong style means smoke and grease escape into the kitchen. Not good.

3. The Magic Number: Calculating Exhaust Airflow (CFM)

Okay, here’s where it gets a bit technical, but stick with me. The whole point of the hood is to suck out the bad stuff, right? The measure of *how much* air it sucks out is called **CFM**, or Cubic Feet per Minute. Calculating the required CFM is arguably the most critical part of the design. Too little CFM, and you don’t capture all the smoke and grease. Too much CFM, and you’re wasting a massive amount of energy pulling conditioned air out of your building (which then needs to be replaced – more on that next). There are different methods for calculating CFM, often dictated by local codes. Some use a linear-foot method (X CFM per linear foot of hood), others are based on the specific appliances underneath (different appliances have different exhaust requirements), and some performance-based tests exist for certain listed hoods.

You absolutely need to factor in the type of cooking. A charbroiler needs significantly more exhaust CFM than a convection oven. Heavy-duty cooking requires higher CFM than light-duty. The hood’s position (wall vs. island) also influences the calculation, with island hoods generally needing more CFM due to cross-drafts. This isn’t a back-of-the-napkin calculation. It requires careful consideration of the **cooking load**, the **hood type and size**, and **local code requirements**. Getting this wrong leads to either a smoky, greasy kitchen or sky-high energy bills. I always recommend working with an experienced engineer or ventilation specialist for this part. Is this the only way? Probably not, but it’s the safest. They’ll have the specific knowledge of local amendments to the International Mechanical Code (IMC) or relevant standards like **NFPA 96** (Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations).

4. Don’t Forget Makeup Air (MUA): The Unsung Necessity

This is the concept that trips up so many people, even experienced operators sometimes. You can’t just suck huge amounts of air *out* of a building without putting air *back in*. If you do, you create negative pressure. Think of trying to suck air out of a sealed bottle – it doesn’t work well. In a kitchen, negative pressure causes all sorts of problems: doors become hard to open, pilot lights on gas appliances can extinguish, nasty drafts pull air from unwanted places (like drains or other rooms), and worst of all, the exhaust hood itself becomes ineffective because there isn’t enough air available for it to pull. It’s like trying to drink a thick milkshake through a tiny straw – frustrating and inefficient.

That’s where **Makeup Air (MUA)** comes in. It’s a separate system designed to replace the air being exhausted by the hood. A well-designed system aims for a slightly positive or neutral building pressure. MUA should ideally replace about 80-90% of the exhaust air, with the remaining air coming from building leakage or HVAC transfer air. The MUA needs to be introduced properly, usually through diffusers near the hood or sometimes directly through the hood itself (integrated systems). Critically, in colder climates like, well, sometimes Nashville in winter, this makeup air needs to be heated or ‘tempered’. Dumping freezing outside air into a kitchen is terrible for staff comfort and can mess with cooking processes. Similarly, in hot climates, untempered MUA adds a huge heat load. So, **tempered MUA** systems heat or cool the incoming air, adding cost and complexity but being essential for comfort and performance. Ignoring MUA is like buying a high-performance car and putting bicycle tires on it – the exhaust system simply cannot function correctly without it. It creates a **balanced system**.

5. Ductwork Design: The Pathway Out

The hood captures the effluent, the fan pulls it, but the **ductwork** is the highway that carries it safely out of the building. Duct design is crucial for both airflow efficiency and fire safety. For Type I hoods, the ductwork must be constructed from specific materials, typically 16-gauge carbon steel or 18-gauge stainless steel, and continuously welded liquid-tight. Why welded? Because you absolutely cannot have grease leaking out of the ductwork joints – that’s a major fire hazard. The duct needs to be properly sized to maintain adequate air velocity (usually between 500 and 2500 feet per minute, often aiming for around 1500 FPM) to keep grease particles entrained in the airflow and prevent them from settling inside the duct, while not being so fast it creates excessive noise and static pressure.

Routing is also critical. Ducts should run as directly as possible to the outside, minimizing turns and elbows. Every bend adds **static pressure** (resistance to airflow), making the fan work harder and reducing efficiency. Long, convoluted duct runs require more powerful, energy-hungry fans. Furthermore, **NFPA 96** has very specific requirements for clearances between grease ducts and combustible materials, often requiring fire-rated enclosures or wraps depending on the proximity. Access panels are also required at regular intervals and at changes in direction to allow for inspection and cleaning – because grease *will* accumulate over time, and regular cleaning is non-negotiable for fire safety. Poor duct design leads to inefficient exhaust, increased fire risk, and cleaning nightmares.

6. Fire Safety First: Integrating Suppression Systems

Given that Type I hoods handle grease-laden vapors, **fire suppression** is mandatory. The most common type is a wet chemical system designed specifically for grease fires (Class K fires). These systems have nozzles strategically placed in the hood plenum and duct collar, aimed at the cooking appliances below. They typically use fusible links or heat detectors that trigger the system automatically when a certain temperature is reached. When activated, the system discharges a fire-suppressing agent (often a potassium carbonate-based solution) that smothers the flames and saponifies the grease – basically turning it into a soapy substance that’s less likely to re-ignite.

Crucially, the fire suppression system *must* be interlocked with the building’s fire alarm and, importantly, with the fuel sources for the cooking equipment under the hood. When the suppression system activates, it should automatically shut off the gas or electrical supply to the appliances. This prevents adding more fuel to the fire. It also often needs to shut down the makeup air fan while keeping the exhaust fan running (or sometimes shutting both down, depending on local codes and specific system design – it’s complex!). The design and installation of these systems are highly specialized and must comply with standards like UL 300 and NFPA 17A & 96. This isn’t a DIY job; it requires certified professionals. Ensuring proper nozzle placement, correct agent quantity, and reliable interlocks during the design phase is paramount.

7. Materials and Construction: Built to Last (and Clean)

Commercial hoods take a beating – heat, grease, constant cleaning. They need to be built tough. Stainless steel is the standard material, usually **Type 304** or sometimes **Type 430** stainless steel. Type 304 offers better corrosion resistance, which is important given the harsh environment, but Type 430 is often acceptable and slightly less expensive. The gauge (thickness) matters too, affecting durability and rigidity. Inside the hood, the **grease filters** are the first line of defense. Their job is to extract grease particles from the air before they enter the ductwork. Common types include **baffle filters** (metal plates arranged in a serpentine pattern that forces air to change direction, causing grease to impinge and drain off) and mesh filters (less common now for Type I hoods as they can clog and pose a fire risk if not meticulously cleaned). Baffle filters are generally preferred for Type I hoods due to their efficiency and durability.

The filters must be easily removable for regular cleaning – usually, they should be washed daily in a commercial dishwasher or a dedicated sink. The hood itself should be designed with smooth, crevice-free surfaces and sloped grease troughs leading to removable grease cups or containers to facilitate cleaning and prevent grease buildup within the hood plenum. Poor construction or hard-to-clean designs inevitably lead to poor sanitation and increased fire risk. Think about the poor soul who has to clean it – make their life easier, and the kitchen will be safer.

8. Smarter Systems: Controls and Energy Efficiency

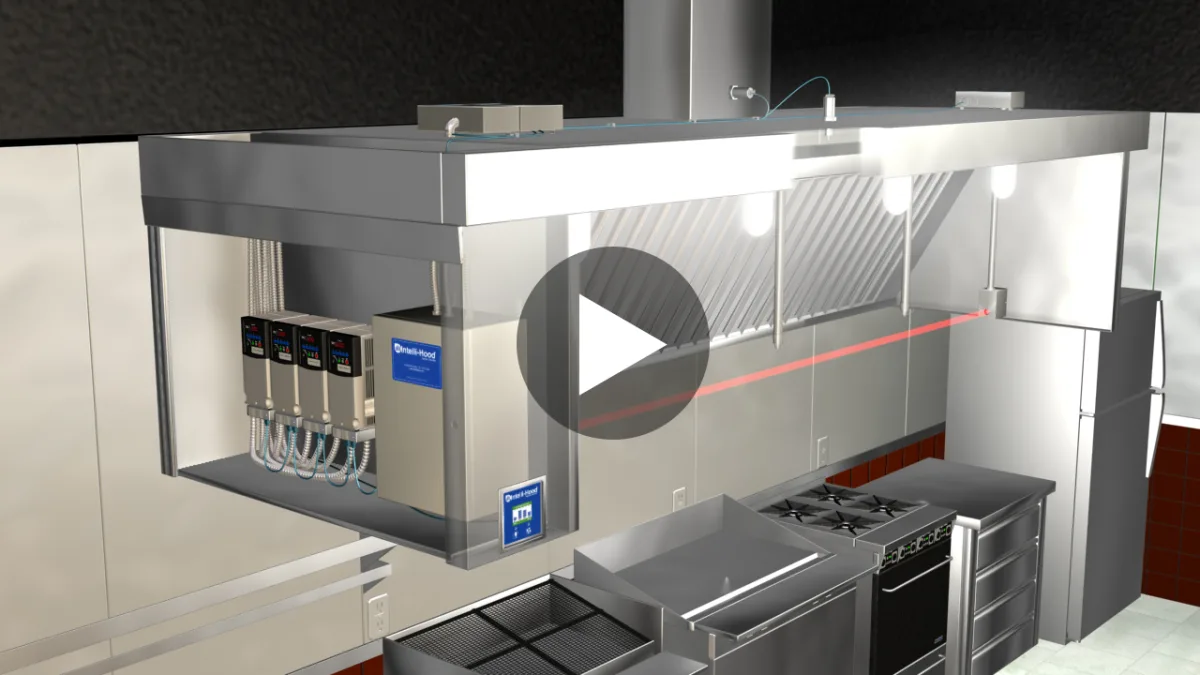

Modern hood systems can incorporate sophisticated controls to improve efficiency and performance. Simple systems might just have an on/off switch for the fan. But more advanced systems can use **Variable Speed Drives (VSDs)** or **Demand Control Kitchen Ventilation (DCKV)**. DCKV systems use sensors (optic, temperature, or smoke) to detect the level of cooking activity. When cooking is light or idle, the system automatically reduces the exhaust and makeup air fan speeds, saving significant energy. When heavy cooking starts, the fans ramp up to full speed. This makes so much sense from an energy perspective – why run the fans at 100% capacity when you’re just simmering a pot of soup or the line is idle between services?

These systems can offer substantial ROI through energy savings, especially in high-volume operations or places with high energy costs. However, they add complexity and upfront cost. The controls need to be properly calibrated and maintained. You also need to ensure the system reliably ramps up when needed to maintain capture and containment. Integrating these controls needs careful planning during the design phase, considering the types of cooking, operating hours, and utility costs. Is the added complexity worth the potential savings? Often, yes, but it requires careful analysis.

9. Navigating the Maze: Code Compliance and Permitting

Ah, codes and permits. The bane of many projects, but absolutely essential. Commercial kitchen ventilation is heavily regulated for very good reasons – fire safety and public health. The primary standard in the US is **NFPA 96**, but the **International Mechanical Code (IMC)** also has extensive requirements, and crucially, state and local jurisdictions often have their own amendments and interpretations. You *must* design the system to meet the specific codes enforced in your location. This involves submitting detailed plans prepared by qualified individuals (often engineers) to the local building department and fire marshal for review and approval *before* installation begins.

Common pitfalls include inadequate hood overhang, incorrect duct materials or construction (like using snap-lock pipe instead of welded duct), insufficient clearance to combustibles, improper MUA system design, incorrect fire suppression coverage, or lack of required access panels for cleaning. Failing inspection can lead to costly delays, rework, or even being unable to open your business. My advice? Engage with the local authorities early in the design process. Understand their specific requirements and interpretations. Don’t assume the codebook tells the whole story; local amendments are common. It’s far easier to adjust a design on paper than to rip out non-compliant ductwork. Maybe I should clarify… it’s *always* easier on paper.

10. Designing for Maintainability: Thinking Ahead

A perfectly designed system is useless if it can’t be properly maintained. And commercial hood systems require *regular* maintenance, primarily cleaning. Grease buildup is inevitable and dangerous. Therefore, the design must consider ease of access for cleaning and service. Can the filters be easily removed without needing a ladder or special tools? Are the grease traps readily accessible? Are there enough code-required access panels in the ductwork, located where someone can actually reach them? Can the exhaust fan itself be accessed for inspection, cleaning, and repair? Sometimes fans are mounted on rooftops in awkward locations, making service difficult and expensive.

Thinking about the maintenance crew during the design phase pays dividends down the road. Consider specifying hinged access panels instead of screw-on types where practical. Ensure adequate lighting around the hood and duct access points. If the fan is roof-mounted, ensure safe roof access and potentially a hinged base for the fan. Designing for easy cleaning encourages regular cleaning, which is the single most important factor in preventing devastating kitchen fires. It seems obvious, but you’d be surprised how often accessibility is an afterthought, leading to neglected systems and increased risk.

Bringing It All Together: The Final Design Thoughts

Whew, okay, that was a lot, I know. Designing a commercial hood system is clearly more complex than it first appears. It’s a balancing act between capturing grease and heat effectively (**Type I vs Type II**, proper **hood style** and overhang), moving the right amount of air (**CFM calculations**), replacing that air (**Makeup Air**), ensuring safe passage (**Ductwork design** and materials), integrating safety mechanisms (**Fire Suppression**), building it to last (**Materials and Construction**), optimizing its operation (**Controls**), meeting regulations (**Code Compliance**), and making it easy to maintain (**Accessibility**).

It requires a holistic approach where each component is considered in relation to the others. A powerful exhaust fan is useless if the MUA system is inadequate or the ductwork is too restrictive. A state-of-the-art hood is unsafe if the fire suppression system isn’t properly integrated or maintained. I’m torn between emphasizing the technical calculations or the practical maintenance aspects more… but ultimately, they’re two sides of the same coin. You need both technical accuracy in the design and practical foresight for long-term operation.

My best advice? Don’t try to wing it or go with the cheapest option without understanding the implications. Invest in professional design help from engineers or ventilation specialists who understand the nuances of **NFPA 96**, the IMC, and local codes. It might seem like an added expense upfront, but it will save you headaches, costly mistakes, potential safety issues, and operational inefficiencies down the line. A well-designed hood system is a fundamental investment in the safety, comfort, and success of any commercial kitchen. Will getting it perfect solve every kitchen problem? Probably not, but it goes a very, very long way.

FAQ

Q: How often do commercial hood systems need to be cleaned?
A: It depends heavily on the type and volume of cooking, but NFPA 96 provides guidelines. Systems for solid fuel cooking (wood, charcoal) often require monthly inspection/cleaning. High-volume operations like 24-hour restaurants or heavy charbroiling might need quarterly inspections. Moderate volume operations typically require semi-annual inspection, while low-volume operations (churches, day camps) might only need annual inspection. However, the grease filters themselves usually require much more frequent cleaning, often daily.

Q: What’s the biggest mistake people make when designing a hood system?
A: Honestly, I think underestimating or completely neglecting the **Makeup Air (MUA)** system is one of the most common and impactful mistakes. People focus on the exhaust hood but forget that the air being removed must be replaced. This leads to negative pressure, poor hood performance, potential safety issues with gas appliances, and overall inefficiency. A close second is improper ductwork installation (wrong materials, not welded, insufficient clearance).

Q: Can I use a Type II hood for a small fryer if I don’t use it much?
A: Absolutely not. Any appliance that produces grease-laden vapors requires a **Type I hood** with appropriate grease filtration and fire suppression, regardless of how often you use it. Using a Type II hood over a fryer is a serious fire hazard and a code violation. There’s no gray area here – if it produces grease, it needs a Type I system.

Q: Are Demand Control Kitchen Ventilation (DCKV) systems worth the extra cost?
A: It really depends on your operation. For kitchens with highly variable cooking loads (busy peaks, long idle periods) and in areas with high energy costs, DCKV systems can offer significant energy savings and a relatively quick return on investment. They use sensors to adjust fan speeds based on actual cooking activity. However, for kitchens with very consistent, high-volume cooking throughout operating hours, the potential savings might be less, and the added complexity and upfront cost might not be justified. You need to analyze your specific cooking patterns and utility rates.
