Okay, let’s talk about commercial hood systems. Honestly, it’s one of those things you don’t *really* think about until you absolutely *have* to. I mean, when was the last time you walked into a restaurant and thought, “Wow, I wonder what their ventilation setup is like?” Probably never, right? But as someone who’s spent years in and around kitchens, both professionally and, well, because I love to eat, I’ve come to appreciate the crucial, often invisible role these systems play. It’s not just about sucking up smoke; It is about safety, efficiency, and even the overall vibe of a place. After moving from the Bay Area to Nashville, I’ve seen a huge variety in kitchen setups – from tiny food trucks parked downtown to huge, sprawling restaurant kitchens in the Gulch. And the one constant? A properly designed and installed hood system.

This isn’t going to be some dry, technical manual. I’m going to break down commercial hood system design and installation in a way that, hopefully, makes sense even if you’re not an engineer. We’ll cover the different types, the design considerations, the install process, and – most importantly – why getting it *right* matters so much. I’ll also touch on some of the common mistakes I’ve seen, and maybe a few horror stories (names will be changed to protect the innocent…and the not-so-innocent). Think of this as your friendly guide to a topic that’s surprisingly complex and, dare I say, fascinating. We’ll look at it from the perspective of a restaurant owner, a chef, and even a diner. Because, let’s face it, a poorly ventilated kitchen affects everyone.

The main thing you’ll take away from this is a solid understanding of the *why* behind the *what*. Why certain design choices are made, why certain regulations exist, and why investing in a good system upfront is always, *always* cheaper in the long run. Whether you’re planning a new kitchen, renovating an existing one, or just curious about how it all works, you should find something useful here. And if not…well, at least you’ll have some new trivia for your next dinner party. My cat, Luna, certainly finds my kitchen ventilation rants fascinating…or at least she pretends to.

The Heart of the Matter: Understanding Commercial Hood Systems

What Exactly *Is* a Commercial Hood System?

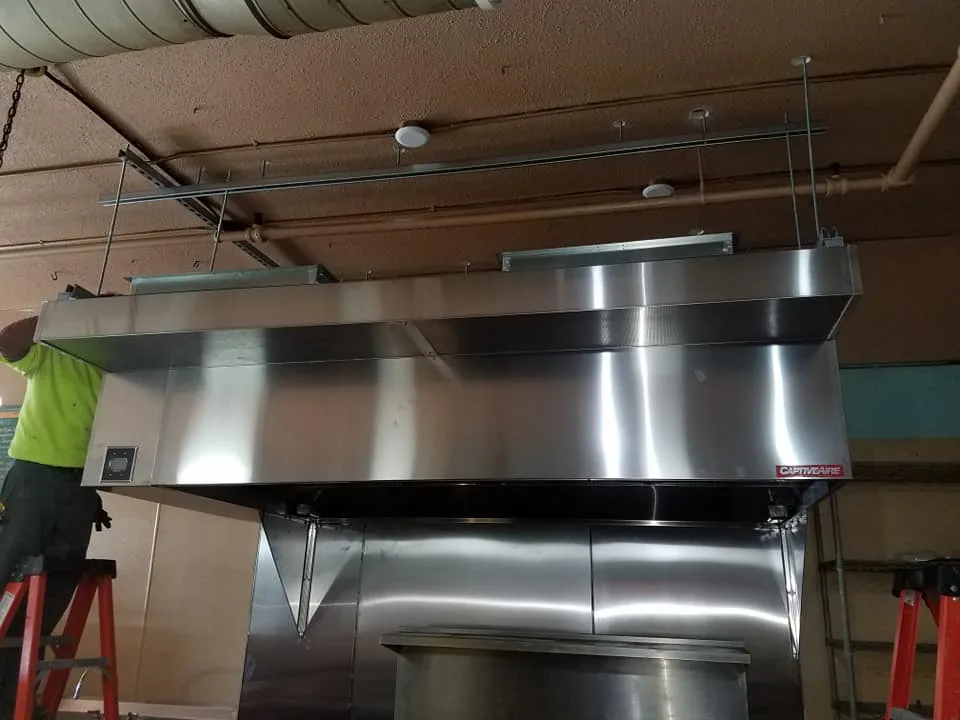

At its most basic, a commercial hood system, sometimes referred to as a kitchen exhaust hood, is a device containing a mechanical fan that hangs above the stove, oven, or grill in a commercial kitchen. It removes airborne grease, fumes, smoke, heat, and steam from the air by evacuation of the air and filtration. But it’s *so* much more than just a big metal box with a fan. A properly designed system is a carefully engineered combination of components working together to create a safe, comfortable, and compliant cooking environment. This includes the hood itself, the ductwork, the exhaust fan, the makeup air system, and often, fire suppression systems. It’s a complex dance of airflow, pressure, and filtration.

Think of it like this: Your cooking equipment generates a lot of ‘stuff’ – smoke, grease, odors, and heat. If that ‘stuff’ isn’t removed effectively, it can create a whole host of problems. We’re talking about everything from greasy film buildup on surfaces (gross and a fire hazard) to poor air quality that can make your staff sick and your customers uncomfortable. And let’s not forget the potential for fires – a grease-laden hood system is a major fire risk. So, the hood system’s job is to capture all that ‘stuff’, filter out the grease and other particulates, and exhaust the rest outside, while simultaneously bringing in fresh, clean air to replace the air that’s being removed. This ‘makeup air’ is crucial, and we’ll talk about that more later.

The design and installation of these systems are governed by a complex set of codes and regulations, primarily NFPA 96 (Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations) and local building codes. These codes are in place for a reason – to ensure safety and protect public health. Ignoring them is not only dangerous but can also lead to hefty fines and even the closure of your business. I’ve seen firsthand the consequences of cutting corners, and it’s never pretty. It’s always best to follow the rules, and get professional assistance.

It’s tempting to think of the hood system as just another piece of equipment, but it’s really an integral part of the building’s infrastructure. It’s connected to the HVAC system, the fire suppression system, and even the electrical system. Everything has to work together seamlessly, and that requires careful planning and expert installation. It is much more complex than most people realize.

Types of Commercial Hoods: Choosing the Right One

Not all hoods are created equal. There are two main types of commercial hoods: Type I and Type II. The choice between them depends primarily on the type of cooking equipment you’re using and the type of food you’re preparing. Understanding that distinction is probably the first big step.

Type I hoods, also known as grease hoods, are designed for use over equipment that produces grease or smoke, such as fryers, griddles, broilers, and ovens. These hoods are equipped with grease filters or extractors that are designed to remove grease particles from the exhaust air. They are *always* required for any equipment that produces grease-laden vapors. Think of your classic burger joint or steakhouse – they’re definitely going to need Type I hoods. These hoods are typically made of stainless steel and are designed to withstand high temperatures and heavy use.

Type II hoods, also known as condensate hoods, are designed for use over equipment that produces heat and moisture, but *not* grease, such as dishwashers, steamers, and certain types of ovens (like some pizza ovens, depending on what you’re cooking in them). These hoods are primarily designed to remove heat and condensation, and they don’t have grease filters. They’re often used in conjunction with Type I hoods, providing additional ventilation for the overall kitchen space. A bakery, for example, might primarily use Type II hoods, unless they also have fryers or a griddle.

Within these two main categories, there are also different styles of hoods, such as wall-mounted canopy hoods (the most common type), island canopy hoods (used over cooking equipment located in the center of the kitchen), and proximity hoods (also known as low-profile or backshelf hoods, which are installed closer to the cooking surface). The choice of style depends on the layout of your kitchen and the specific needs of your equipment. It’s all about finding the right balance between capture efficiency, aesthetics, and cost.

Design Considerations: More Than Just Size

Designing a commercial hood system is not as simple as measuring your cooking equipment and ordering a hood that’s the same size. There are a *lot* of factors to consider, and getting it wrong can have serious consequences. One of the most critical factors is airflow, measured in cubic feet per minute (CFM). The CFM rating of your hood system must be sufficient to capture and remove all the smoke, grease, and heat produced by your cooking equipment. This is determined by a number of factors, including the type and size of the equipment, the type of cooking being done, and the length and configuration of the ductwork.

Undersizing the hood is a common mistake, and it can lead to all sorts of problems, from poor air quality to grease buildup in the ductwork (a major fire hazard). Oversizing the hood, on the other hand, can waste energy and money. It’s a delicate balancing act, and it’s best to work with a qualified professional who can perform the necessary calculations and ensure that your system is properly sized. This isn’t something you want to guess at, trust me. It’s not just about the size of the hood, it is about the entire system, the airflow, all working in harmony.

Another important consideration is the makeup air system. As I mentioned earlier, this system replaces the air that’s being exhausted by the hood. Without adequate makeup air, your kitchen can become negatively pressurized, which can cause a number of problems, including doors that are difficult to open, backdrafting of combustion appliances (like water heaters), and reduced hood performance. The makeup air system should be designed to provide a slightly positive pressure in the kitchen, ensuring that the hood can capture and exhaust contaminants effectively. This is often overlooked, but it’s absolutely crucial for a properly functioning system.

Other design considerations include the location of the hood, the height of the hood above the cooking surface, the type of filters used, and the design of the ductwork. The ductwork, in particular, is often a source of problems. It should be as short and straight as possible, with minimal bends and transitions. Sharp bends and long runs of ductwork can create resistance to airflow, reducing the effectiveness of the hood. I’ve seen some truly bizarre ductwork configurations in my time, and they’re almost always a sign of a poorly designed system.

The Installation Process: Precision Matters

Even the best-designed hood system won’t perform properly if it’s not installed correctly. Commercial hood system installation is a specialized job that requires skilled technicians who understand the codes and regulations, as well as the intricacies of airflow and ventilation. This isn’t a DIY project, folks. Seriously. Unless you have extensive experience in this area, leave it to the professionals.

The installation process typically begins with a thorough assessment of the site, including measurements of the space, verification of the electrical and plumbing connections, and an evaluation of the existing HVAC system. The installers will then carefully mount the hood, ensuring that it’s properly secured and level. Next comes the ductwork, which must be fabricated and installed according to strict specifications. All joints and seams must be sealed to prevent leaks, and the ductwork must be properly supported to prevent sagging or collapse.

Once the hood and ductwork are in place, the exhaust fan is installed, typically on the roof. The fan must be properly sized and balanced to ensure optimal performance. The makeup air system is then installed, which may involve running additional ductwork and installing a separate makeup air unit. Finally, the fire suppression system is installed and tested. This system is typically integrated with the hood and is designed to automatically activate in the event of a fire, suppressing the flames and preventing the spread of the fire.

Throughout the installation process, careful attention must be paid to detail. Every connection, every seam, every component must be installed correctly to ensure that the system functions as designed. And once the installation is complete, the entire system must be tested and balanced to verify that it’s operating at the correct CFM and that the makeup air is properly balanced. This is a critical step, and it’s often overlooked. A properly balanced system is essential for optimal performance and safety.

Common Mistakes and How to Avoid Them

I’ve seen a lot of mistakes made when it comes to commercial hood systems, and most of them are avoidable. One of the most common is, as I mentioned earlier, undersizing the hood. This is often done in an attempt to save money, but it’s a false economy. An undersized hood will not capture and remove contaminants effectively, leading to poor air quality, grease buildup, and increased fire risk. It’s always better to err on the side of caution and choose a hood that’s slightly larger than you think you need.

Another common mistake is neglecting the makeup air system. I can’t stress enough how important this is. Without adequate makeup air, your hood system simply won’t work properly. It’s like trying to suck air out of a sealed container – it just can’t be done. Make sure your makeup air system is properly designed and installed, and that it’s providing the correct amount of fresh air.

Poor ductwork design and installation is another frequent problem. As I mentioned earlier, the ductwork should be as short and straight as possible, with minimal bends and transitions. Avoid sharp bends, long runs, and undersized ducts. And make sure all joints and seams are properly sealed. Leaky ductwork can reduce the effectiveness of the hood and can even create a fire hazard.

Finally, neglecting regular maintenance is a huge mistake. Commercial hood systems require regular cleaning and maintenance to ensure optimal performance and safety. Grease buildup in the hood and ductwork is a major fire hazard, and it can also reduce the effectiveness of the system. Make sure you have a regular cleaning schedule in place, and that you’re following the manufacturer’s recommendations for maintenance. This is not an area where you want to cut corners.

Fire Suppression Systems: A Non-Negotiable

I’ve touched on this a few times, but it bears repeating: fire suppression systems are absolutely essential for any commercial kitchen with a Type I hood. These systems are designed to automatically detect and suppress fires in the hood, ductwork, and cooking appliances. They typically use a combination of wet chemical agents and water to extinguish the flames and prevent the fire from spreading.

There are different types of fire suppression systems available, but the most common type for commercial kitchens is a wet chemical system. These systems use a specially formulated chemical agent that’s designed to react with the hot grease, creating a soapy foam that smothers the flames and cools the cooking surface. They’re incredibly effective at extinguishing grease fires, and they can prevent a small fire from turning into a major disaster.

The installation of a fire suppression system is typically integrated with the hood installation, and it must be performed by a licensed and certified technician. The system must be designed and installed according to strict codes and regulations, and it must be regularly inspected and maintained to ensure that it’s in proper working order. This is not something you can skimp on. A properly functioning fire suppression system can save lives and protect your property.

I’ve heard horror stories of kitchens that didn’t have fire suppression systems, or that had systems that weren’t properly maintained. The results were devastating. Don’t let that happen to you. Make sure your fire suppression system is up to code and in good working order. It’s an investment that’s well worth the cost.

Energy Efficiency: Saving Money and the Planet

Commercial hood systems can be significant energy consumers, but there are ways to improve their efficiency and reduce your energy costs. One of the most effective ways is to choose a hood with a high-efficiency exhaust fan. These fans are designed to move more air with less energy, and they can significantly reduce your energy consumption.

Another way to improve efficiency is to install a variable-speed exhaust fan. These fans can adjust their speed based on the cooking load, reducing energy consumption during periods of low activity. They’re particularly useful for kitchens that have fluctuating cooking volumes throughout the day.

Properly maintaining your hood system can also improve its efficiency. Clean filters and ductwork allow for better airflow, reducing the workload on the exhaust fan. And a well-balanced system, with adequate makeup air, will operate more efficiently than a system that’s struggling to draw air.

Finally, consider investing in energy-recovery systems. These systems capture waste heat from the exhaust air and use it to preheat the incoming makeup air. They can significantly reduce your heating costs, particularly in colder climates. They’re a bit of an upfront investment, but they can pay for themselves over time through energy savings.

Regular Maintenance: Keeping Things Running Smoothly

I’ve said it before, and I’ll say it again: regular maintenance is crucial for commercial hood systems. These systems are working hard every day, removing grease, smoke, and heat from your kitchen. Over time, grease and other contaminants can build up in the hood, ductwork, and filters, reducing the system’s efficiency and creating a fire hazard.

The frequency of cleaning depends on the type of cooking you’re doing and the volume of food you’re producing. High-volume restaurants that do a lot of frying or grilling will need to have their hoods cleaned more frequently than restaurants that primarily use ovens or steamers. The NFPA 96 standard provides guidelines for cleaning frequencies, but it’s always best to err on the side of caution.

Cleaning a commercial hood system is not a pleasant task, and it’s best left to professionals. There are companies that specialize in hood cleaning, and they have the equipment and expertise to do the job safely and effectively. They’ll typically use a combination of high-pressure washing, degreasing agents, and scraping to remove the built-up grease and grime.

In addition to cleaning, regular maintenance should also include inspections of the exhaust fan, makeup air system, and fire suppression system. These components should be checked for wear and tear, and any necessary repairs or replacements should be made promptly. A well-maintained hood system is a safe and efficient hood system.

The Future of Commercial Hood Systems: Smart and Sustainable

Like everything else, commercial hood systems are evolving. Technology is playing an increasingly important role, with smart hoods that can monitor airflow, temperature, and even grease buildup. These systems can automatically adjust fan speeds, alert you to potential problems, and even schedule maintenance. They’re becoming more sophisticated and more integrated with other building systems.

Sustainability is also a growing trend. Manufacturers are developing more energy-efficient hoods and exhaust fans, and there’s a greater emphasis on using sustainable materials and reducing waste. Energy-recovery systems are becoming more common, and there’s a growing interest in using alternative fuels and renewable energy sources.

I think we’ll also see more integration with kitchen display systems (KDS) and other restaurant technology. Imagine a hood system that can automatically adjust its settings based on the orders coming in, optimizing airflow and energy consumption in real-time. It’s not science fiction; it’s the direction things are heading.

Ultimately, the future of commercial hood systems is about creating safer, more efficient, and more sustainable kitchens. It’s about using technology to improve performance, reduce costs, and protect the environment. It’s a fascinating field, and I’m excited to see what the future holds. I might need to get a new cat tree to have enough space to pace around and think about all this innovation. Luna deserves it.

The Bottom Line: Investing in Quality

If there’s one thing I’ve learned over the years, it’s that investing in a quality commercial hood system is one of the best decisions you can make for your restaurant. It’s not just about meeting code requirements; it’s about creating a safe, comfortable, and efficient working environment for your staff, and a pleasant dining experience for your customers.

A well-designed and properly installed hood system will protect your investment, reduce your operating costs, and minimize your risk of fire. It’s an essential part of any commercial kitchen, and it’s worth doing right. Don’t cut corners, don’t skimp on maintenance, and don’t hesitate to call in the professionals when you need help. Your hood system is the unsung hero of your kitchen, working tirelessly behind the scenes to keep things running smoothly. Treat it with the respect it deserves, and it will reward you with years of reliable service. I am constantly reminding myself of this. I am not sure if it is the best approach, but for now it is working.

So, the next time you’re enjoying a meal at your favorite restaurant, take a moment to appreciate the complex system that’s working to keep the air clean and the kitchen safe. It’s a testament to human ingenuity and a reminder that even the most mundane things can be surprisingly fascinating. And if you’re planning your own kitchen, remember the lessons we’ve discussed here. A little planning and investment upfront can save you a lot of headaches (and money) down the road.

FAQ

Q: How often should I have my commercial hood system cleaned?
A: The frequency of cleaning depends on the type and volume of cooking you’re doing. High-volume restaurants that do a lot of frying or grilling may need to have their hoods cleaned as often as every month, while restaurants that primarily use ovens or steamers may only need to have their hoods cleaned every three to six months. Refer to NFPA 96 guidelines and consult with a professional hood cleaning company.

Q: Can I install a commercial hood system myself?
A: No, commercial hood system installation is a specialized job that requires skilled technicians who understand the codes and regulations, as well as the intricacies of airflow and ventilation. It’s best to leave it to the professionals.

Q: What’s the difference between a Type I and a Type II hood?
A: Type I hoods, or grease hoods, are designed for use over equipment that produces grease or smoke, such as fryers, griddles, and broilers. Type II hoods, or condensate hoods, are designed for use over equipment that produces heat and moisture, but not grease, such as dishwashers and steamers.

Q: What is makeup air, and why is it important?
A: Makeup air is the air that’s brought into the kitchen to replace the air that’s being exhausted by the hood. Without adequate makeup air, your kitchen can become negatively pressurized, which can cause a number of problems, including doors that are difficult to open, back drafting of combustion appliances, and reduced hood performance.
