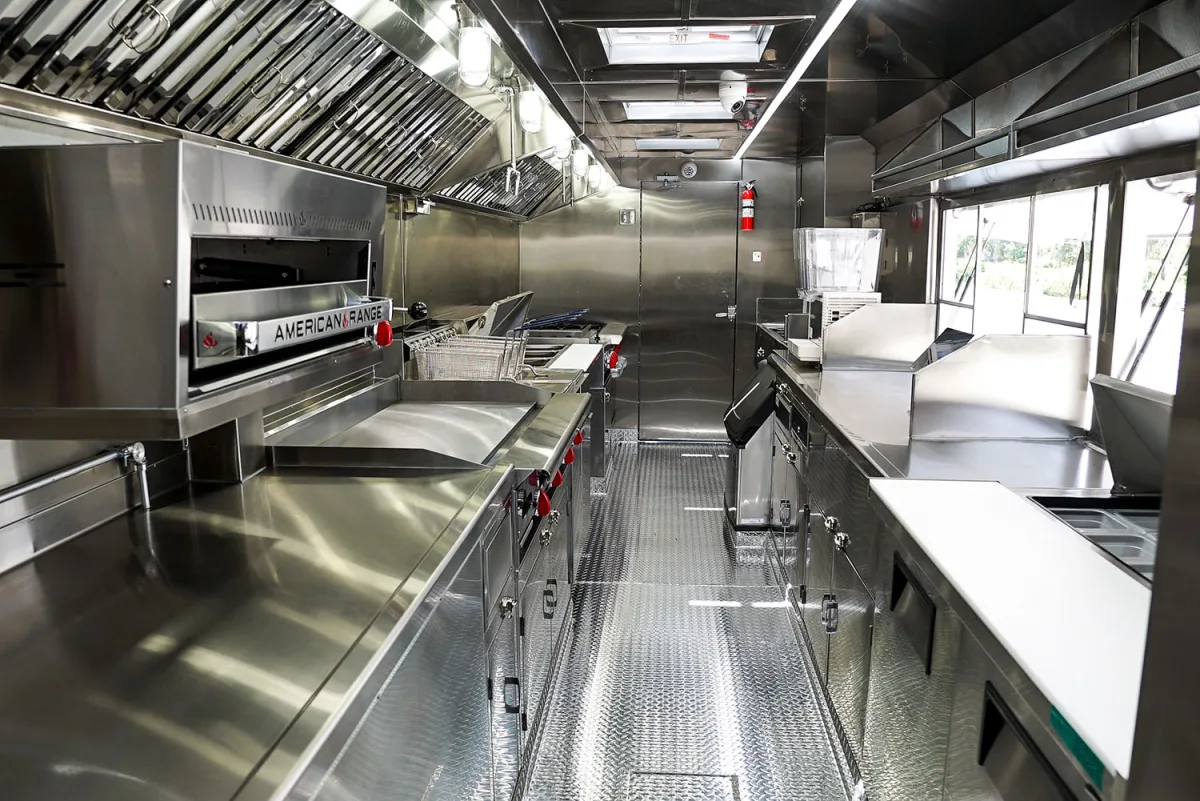

Designing Your Dream Food Truck Layout Insights from Nashville

19 min read

Hey everyone, Sammy here from Chefsicon.com, writing to you from my cozy little corner here in Nashville. Luna, my rescue cat, is currently demanding attention by walking across the keyboard, so forgive any typos – actually, maybe blame her? Anyway, let’s talk about something I see *everywhere* in this vibrant city, and something that honestly fascinates me: food trucks. Specifically, the intricate puzzle of designing your dream food truck layout. It’s more than just cramming equipment into a box on wheels; it’s about creating a functional, efficient, and even inspiring workspace in an incredibly constrained environment. It’s a blend of culinary needs, logistical nightmares, and pure, unadulterated ingenuity.

I remember back in my Bay Area days, food trucks were exploding, each one a tiny, mobile testament to someone’s culinary passion. But even then, I was always peering inside, trying to figure out how they made it all *work*. How did they fit a grill, fryer, prep station, fridge, and sinks into something smaller than my first studio apartment? Now, living in Nashville, with its incredible food scene and thriving food truck culture, that curiosity has only grown. It’s part systems analysis, part culinary obsession. You see these amazing chefs turning out restaurant-quality food from these compact kitchens, and you just *know* the layout is a huge part of their success. It’s not just about the truck; it’s about the thought process behind optimizing every single square inch.

So, today, I want to dive deep into this. We’re not just talking about where to put the fryer. We’re talking about workflow, ergonomics, safety, compliance, and even a bit of branding within those metal walls. Whether you’re sketching out your first truck idea on a napkin or looking to optimize an existing setup, I hope to share some insights, maybe raise some questions you hadn’t considered, and generally geek out about the fascinating world of mobile kitchen design. This isn’t just about building a truck; it’s about building the heart of your mobile culinary business. Let’s unpack the process of designing your dream food truck layout, piece by painstaking piece. It’s a journey, for sure, maybe even a bit daunting, but getting the layout right is fundamental.

Decoding Your Mobile Kitchen: Key Layout Considerations

1. Start with the Soul: Your Menu & Concept

Okay, first things first. Before you even think about the physical truck, you absolutely *have* to nail down your menu and concept. This sounds obvious, right? But you’d be surprised how many people get excited about the *idea* of a food truck without fully considering how their specific food dictates the space. Are you slinging tacos? You’ll need ample griddle space, lots of small containers for toppings (cold wells!), and maybe a steamer for tortillas. Gourmet burgers? That means a serious grill or flat-top, probably a fryer, and dedicated assembly space. Baking cupcakes on board? You need oven capacity, cooling racks, and space for decorating that won’t jostle everything around. Your menu is the blueprint for your kitchen.

Think about the actual *process* of making your signature dishes. What equipment is essential? What’s nice to have but maybe can wait? How much prep can be done beforehand (in a commissary kitchen, perhaps?) versus what needs to be done *in* the truck? This directly impacts the required prep space, refrigeration needs, and cooking equipment. Also, consider the volume you anticipate. Serving 50 lunches is vastly different from serving 300 dinners at a festival. Your layout needs to support your peak demand. The concept also influences things like the service window style and even the aesthetic vibe you want the interior to subtly convey, even if customers only glimpse it briefly. It all starts here. Don’t underestimate the power of menu-driven design; it’s the foundation upon which everything else is built. Honestly, skipping this step thoroughly is setting yourself up for major headaches down the road. I’ve seen trucks where the layout clearly fought the menu, and it’s painful to watch the inefficiency.

2. The Right Ride: Choosing Your Truck Base

Now that you know *what* you’ll be cooking, let’s talk about *where* you’ll be cooking it. The vehicle itself is a massive decision. You’ve basically got a few main options: the classic step van (think UPS truck), a trailer towed by another vehicle, or sometimes even a converted bus or larger vehicle. Each has significant pros and cons that directly impact your layout possibilities. Step vans are often the go-to because they offer a self-contained unit with decent space, but they can be mechanically complex (engine, transmission, etc., all in one). Trailers offer potentially more layout flexibility (no engine compartment taking up space) and can be detached, but you need a capable tow vehicle, and maneuvering can be trickier. Converted buses offer lots of space but can be expensive to acquire and outfit, plus potentially more challenging to park.

Size is obviously a huge factor. A longer truck offers more linear space, which might be great for an assembly-line style workflow. But a longer truck is also harder to park and navigate in tight urban spots or crowded events. Consider the typical venues you plan to operate in. Height is another constraint – ensure your chosen equipment, especially ventilation hoods, will fit vertically. Then there’s the budget. The cost of the base vehicle is just the start; the build-out is where the real expenses lie. An older, cheaper truck might save money upfront but cost more in repairs and potentially limit your layout due to existing structures or wear and tear. A newer, purpose-built shell might cost more initially but offer a blank canvas and potentially greater reliability. Weight distribution planning also starts here – you need to know the vehicle’s weight limits and plan the layout so heavy equipment isn’t dangerously concentrated.

3. Go with the Flow: Mastering Workflow

This, for me, is where the real design magic happens. Workflow optimization is paramount in a tiny food truck kitchen. Think about the journey of an order from start to finish. It typically goes something like this: Order In -> Ingredient Retrieval (Cold/Dry Storage) -> Prep -> Cooking -> Plating/Packaging -> Service Out. Your layout should facilitate a smooth, logical flow with minimal backtracking and crossover between staff (if you have multiple people). Imagine drawing lines on the floor tracing the movement for each step – you want those lines to be as short and direct as possible, without constantly bumping into each other.

We often talk about the ‘kitchen triangle’ in traditional kitchens (sink, fridge, stove). In a linear food truck, it’s more like a production line. Stations should ideally be arranged in sequence. For example: Cold storage -> Prep counter (with nearby hand sink) -> Cooking equipment (grill, fryer, oven) -> Finishing/Plating area -> Service window. The goal is efficiency of movement. Every extra step taken hundreds of times a day adds up to significant wasted time and energy, and increases the chance of collisions or errors during a busy rush. Consider ‘zones’: a prep zone, a cooking zone, a cleaning zone, a service zone. Try to keep related tasks within their zones. Is this always perfectly achievable? Maybe not, space is tight. But striving for this logical flow is critical. I sometimes wonder if mapping it out physically with tape on a garage floor could be a useful exercise before committing to the build. You need to *feel* the flow, not just draw it.

4. Gear Up: Selecting Essential Equipment

Equipment choice is intrinsically linked to your menu and workflow. In a food truck, space and power are premium commodities, so you need to be smart. Prioritize multi-functional equipment whenever possible. Can a combi oven replace both a steamer and a convection oven? Can a flat-top griddle handle multiple tasks? Think lean. Every piece of equipment needs to earn its place. Make a list of absolute essentials based on your menu (Section 1) and then evaluate based on size, power draw, and functionality.

Consider the power source: propane is common for cooking equipment (grills, fryers, ovens) due to its efficiency, but you’ll need secure onboard propane storage. Electrical equipment requires a robust generator or shore power access, and you need to calculate your total electrical load carefully to ensure your generator can handle it. Undersized generators are a common point of failure. Then there’s weight and placement. Heavy items like ovens, fryers, and refrigerators need to be positioned considering the truck’s overall balance and suspension capacity. Placing all heavy gear on one side is a recipe for disaster (literally and figuratively). Also think about ventilation needs – anything producing grease-laden vapor or significant heat needs to be under an appropriate hood vent system (more on that later). Don’t forget the smaller things: microwaves, blenders, mixers – they all need space and power too.

5. Chill Out & Stock Up: Refrigeration and Storage

Food safety starts with proper temperature control. Your refrigeration strategy is crucial. Undercounter refrigerators and freezers are often preferred in food trucks because they save vertical space and can double as work surfaces. Reach-in units might offer more capacity but consume a larger footprint. Consider glass doors for quick inventory checks versus solid doors for slightly better energy efficiency. The key is having enough *reliable* cold storage for your peak service needs, keeping food within safe temperature zones even on hot days with the doors opening frequently. Don’t forget space for a dedicated handwashing sink and likely a three-compartment sink for warewashing, as required by health codes.

Beyond cold storage, you need efficient dry storage. Think vertically! Wall-mounted shelves are essential, but make sure they have lips or guards to prevent items from sliding off during transit. Use clear, stackable containers for ingredients. Magnetic knife strips, wall hooks for utensils, and overhead racks can maximize usable space. Every nook and cranny needs to be considered. Remember, everything needs to be secured for travel. Bungee cords, latches on cabinets and drawers, and non-slip shelf liners are your best friends. Underestimating storage needs is another common pitfall. You need space for food ingredients, packaging supplies (boxes, bags, containers), cleaning supplies, smallwares, and maybe even marketing materials. Plan meticulously.

6. The Window to Your World: Service Area Design

The service window is your primary point of interaction with customers. Its design significantly impacts customer experience and operational speed. Consider the placement first – typically on the passenger side of the truck, away from traffic. How large should it be? A bigger window feels more open but might expose the interior more and take up valuable wall space. Some trucks opt for two windows: one for ordering and payment, another for pickup. This can improve flow during busy periods but requires more space and potentially an extra staff member.

You need adequate counter space both inside and outside the window. Inside, staff need room to place finished orders, handle payments, and interact with customers without being cramped. Outside, a small shelf or counter gives customers a place to rest their items or add condiments. Think about the height – it should be comfortable for both staff and customers. An awning is almost essential, providing shade and rain protection for customers and preventing glare or rain from entering the truck. How does the service window integrate with the rest of the layout? Ideally, the plating/packaging station should be right next to it to minimize steps. Consider space for your POS system, menu display (digital or static?), and any condiment/napkin station.

7. Water Works: Plumbing Essentials

Okay, let’s talk plumbing. It’s not glamorous, but it’s absolutely critical for health code compliance and basic function. You’ll need distinct systems for fresh water and grey water (wastewater from sinks). The size of your tanks is important. Fresh water capacity determines how long you can operate before needing a refill. Grey water capacity must typically be larger than the fresh water capacity (often 15-50% larger, check local regulations!) to prevent overflows. Tank placement needs careful consideration regarding weight distribution and ease of access for filling and emptying.

Health codes universally require at least one dedicated handwashing sink with hot and cold running water, soap, and paper towels, easily accessible to food handlers. You’ll also typically need a three-compartment sink (wash, rinse, sanitize) for washing utensils and equipment, plus potentially a separate food prep sink depending on your menu and local rules. A reliable hot water heater is non-negotiable. Tankless, on-demand water heaters are popular for space-saving, but ensure they can meet the demands of all sinks simultaneously. All plumbing needs to be properly installed to prevent leaks and ensure proper drainage. Again, researching and adhering strictly to your local health department’s requirements is non-negotiable here. Don’t guess; verify.

8. Powering Up & Clearing the Air: Utilities

Running a kitchen on wheels requires significant power and effective ventilation. Your power source is usually a generator, unless you have reliable access to shore power at your service locations. Generator choice involves balancing power output (measured in watts), fuel type (gas, diesel, propane), noise level, and physical size/weight. Calculate the total wattage needed by all your electrical equipment running simultaneously (fridge, lights, pumps, POS, any electric cooking appliances) and choose a generator with a capacity comfortably above that (maybe 20-25% buffer). Generator placement often involves a separate, ventilated compartment to minimize noise and keep fumes away from food prep and service areas.

Equally critical is the ventilation system. A commercial-grade hood vent installed over your cooking equipment (grills, fryers, ranges, ovens) is essential for removing heat, smoke, grease-laden vapors, and odors. This isn’t just about comfort; it’s a major safety requirement to prevent fire hazards and maintain air quality. The system includes the hood itself, filters (baffle filters are common), an exhaust fan (properly sized for the hood and cooking load), and ducting. You also need a source of make-up air to replace the air being exhausted, ensuring proper airflow and preventing negative pressure inside the truck. Don’t skimp here; a poorly designed or undersized ventilation system is dangerous and will make working in the truck unbearable, especially in summer. Lastly, plan your lighting (energy-efficient LEDs are ideal) and the placement of electrical outlets carefully, ensuring they are sufficient in number, conveniently located for each piece of equipment, and rated for the required load.

9. Safety Isn’t Optional: Compliance and Precautions

Operating a food truck involves inherent risks, from cooking fires to traffic accidents to foodborne illness. Building safety features into your layout is crucial. A built-in fire suppression system specifically designed for commercial kitchens (usually targeting the hood and cooking appliances) is often legally required and always a very good idea. Keep appropriate fire extinguishers (Class K for kitchen grease fires, ABC for general purposes) easily accessible. Non-slip flooring is a must to prevent falls in potentially greasy or wet conditions. Ensure clear pathways and exits – don’t let equipment or storage block movement, especially during a rush.

Beyond immediate physical safety, there’s health code compliance. As mentioned with plumbing, requirements vary significantly by city, county, and state. Research *your* specific local regulations regarding everything: sink requirements, water tank sizes, surface materials (must be smooth, non-porous, easily cleanable), refrigeration temperatures, food storage practices, waste disposal, and employee hygiene. Your layout must facilitate compliance. This might mean specific materials for countertops, designated areas for storing cleaning supplies away from food, or ensuring proper spacing between raw and ready-to-eat food prep areas. Some jurisdictions might also have requirements related to ADA accessibility for the service window. Build compliance into the design from day one to avoid costly retrofits or failing inspections. It might seem like a hassle, but it’s fundamental to operating legally and safely.

10. The Finishing Touches: Aesthetics and Brand Vibe

Okay, you’ve got the functional core dialed in – workflow, equipment, safety, compliance. Now, let’s talk about making the space *yours*. While customers might only see a sliver of the interior, the overall aesthetics and branding still matter. The materials you choose (stainless steel is standard for durability and cleanability, but maybe accents of wood or tile?), the lighting (functional task lighting plus maybe some warmer ambient light?), and the general organization contribute to the perceived professionalism and quality of your operation. A clean, well-organized, and thoughtfully designed interior, even if compact, sends a positive message.

Use vertical space not just for storage but also for internal branding or essential information. Maybe a small, stylishly designed board with your core values, or clearly labeled containers that look neat and professional. Even the way your menu is displayed inside (for staff reference) can be optimized. Think about small creature comforts for the staff working long hours in this tight space – maybe a small personal item shelf, a good spot for a water bottle, or efficient placement of trash receptacles. While function absolutely trumps form in a food truck, incorporating some thoughtful aesthetic touches and ensuring the internal look aligns subtly with your external brand identity can elevate the entire operation. It shows care and attention to detail, which often translates into the food itself. It’s about making a potentially stressful environment as pleasant and efficient as possible for the people working hardest inside it.

Bringing Your Mobile Kitchen Dream to Life

Whew, okay. That was a lot, wasn’t it? Designing a food truck layout is genuinely a complex undertaking. It requires balancing your culinary vision with the harsh realities of limited space, tight budgets, stringent regulations, and the laws of physics (hello, weight distribution!). It forces you to think critically about every single inch, every process, every piece of equipment. It’s like playing Tetris, but with hot fryers and health codes. Getting it right takes careful planning, tons of research into local rules, and probably a few moments of tearing your hair out. I’ve certainly felt that way just thinking through all the variables while writing this!

But here’s the thing: a well-designed layout is the unsung hero of a successful food truck. It enables speed, efficiency, safety, and consistency. It reduces stress on the staff during those inevitable crazy rushes. It allows your culinary creativity to shine because the operational foundation is solid. So, my challenge to you, if you’re embarking on this journey, is this: don’t rush the layout phase. Sketch it out, measure everything twice (or three times), walk through the motions mentally or physically, get feedback if you can. Is it daunting? Yes. Is it worth the effort? Absolutely.

Ultimately, the ‘dream’ layout is the one that works best for *your* specific concept, *your* menu, and *your* workflow. There’s no single perfect template. But by carefully considering all these elements – from the big picture concept down to the placement of the last electrical outlet – you can create a mobile kitchen that’s not just functional, but a space where your food truck dream can truly thrive. Now, if you’ll excuse me, I think Luna has finally fallen asleep on my notes, and I need to figure out what *I’m* having for lunch. Maybe I’ll track down a Nashville food truck…

FAQ

Q: How much does it actually cost to design and build out a food truck layout?
A: Oh boy, that’s the million-dollar question (sometimes literally!). It varies massively. A basic DIY build-out on a used truck might start around $20,000-$50,000 if you’re handy and find good deals on equipment. A professional custom build with new equipment on a new truck can easily soar past $100,000, sometimes reaching $150,000 or even more depending on complexity, specialized equipment, and finishes. Design services alone can range from a few thousand dollars for consultations and drawings to being bundled into a larger custom build package. It really depends on your concept, truck choice, equipment needs, and whether you hire professionals.

Q: What’s the single biggest mistake people make when designing their food truck layout?
A: It’s hard to pick just one! But if I had to, I’d say underestimating workflow and space constraints. People get excited about fitting in cool equipment but don’t realistically map out how staff will move and work during a busy service. This leads to bottlenecks, inefficiency, staff bumping into each other, and increased stress. Closely related is underestimating storage needs (both cold and dry) and not planning for secure storage during transit. Forgetting about ventilation or skimping on it is another huge, potentially dangerous mistake.

Q: How critical is the ventilation system in a food truck layout?
A: Extremely critical. I can’t stress this enough. It’s vital for several reasons: 1) Safety: It removes grease-laden vapors, reducing fire risk. 2) Health Code Compliance: Proper ventilation is almost always legally mandated. 3) Staff Comfort & Health: It removes heat, smoke, and fumes, making the environment workable and safer to breathe in. 4) Equipment Longevity: Reducing heat and grease buildup can help your other equipment last longer. A poorly ventilated truck is miserable, unsafe, and likely illegal. It needs to be a top priority in your design and budget.

Q: I’ve already built my truck, but the layout isn’t working well. Can I change it?
A: Yes, you *can* change a food truck layout after it’s built, but it’s often difficult, disruptive, and expensive. Equipment might be bolted down, plumbing and electrical lines run specifically for the current setup, and walls/surfaces might need to be removed and replaced. Moving major components like sinks, refrigerators, or cooking equipment can trigger the need for new inspections. While minor tweaks might be feasible, a significant layout overhaul can be almost as much work as the initial build. That’s why putting so much thought into the initial designing your dream food truck layout phase is really crucial – measure twice, cut once, as they say!
